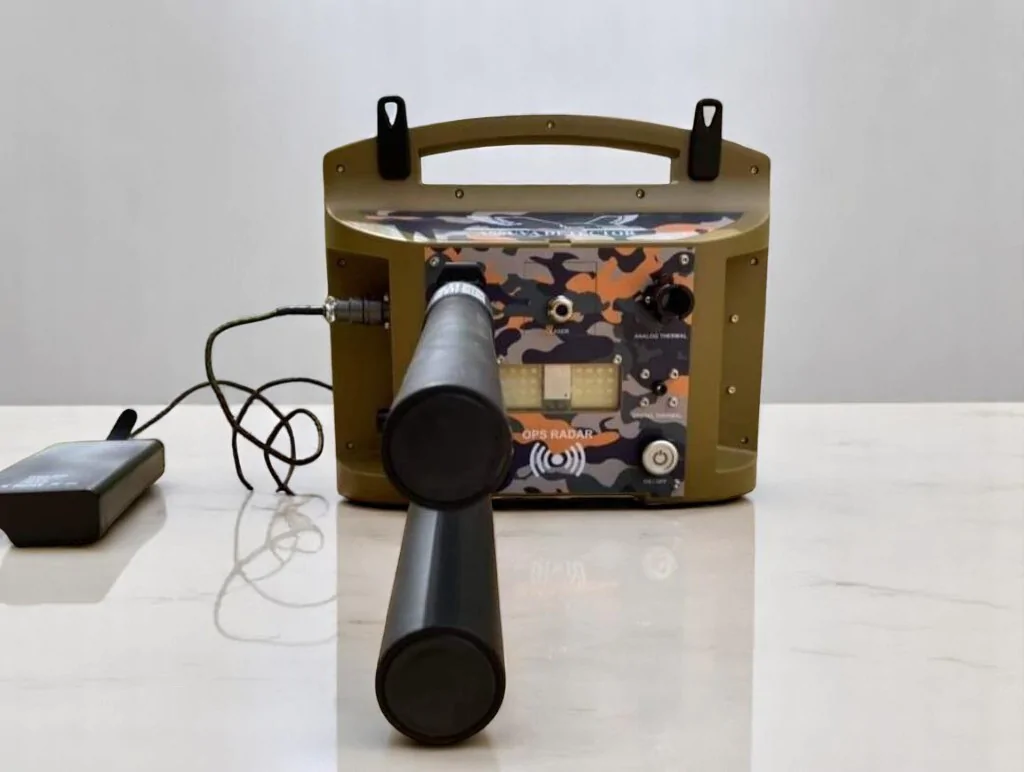

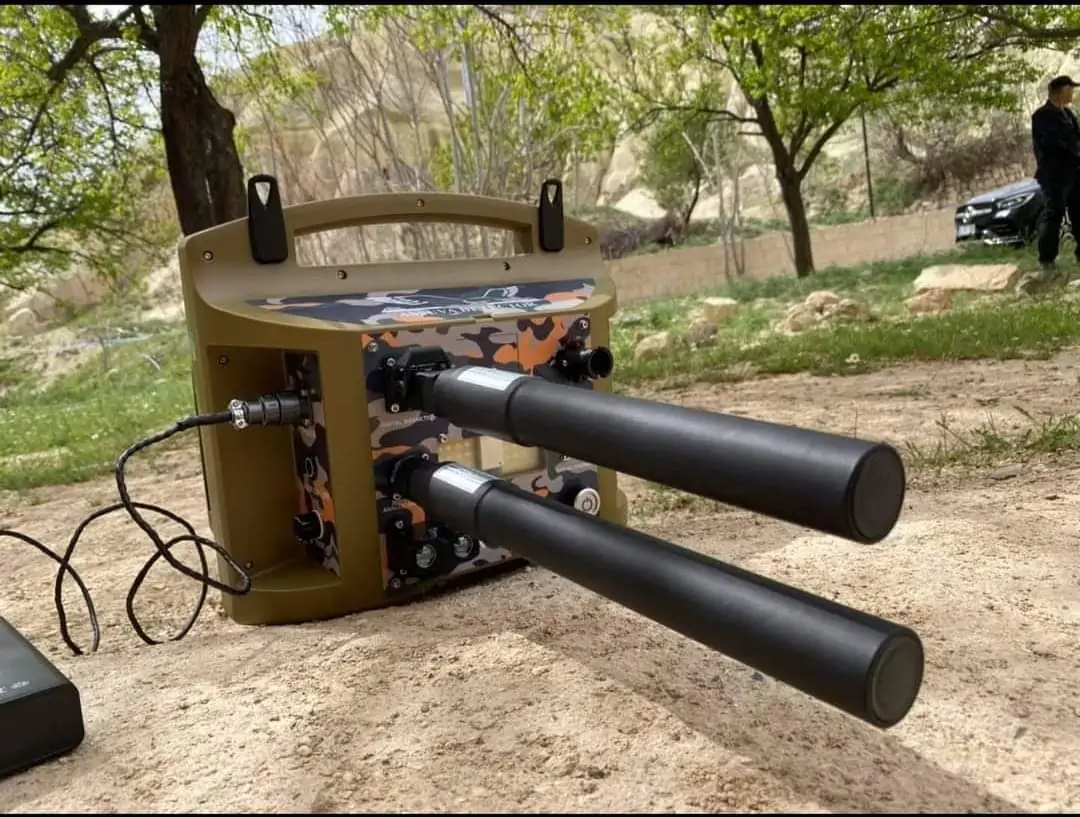

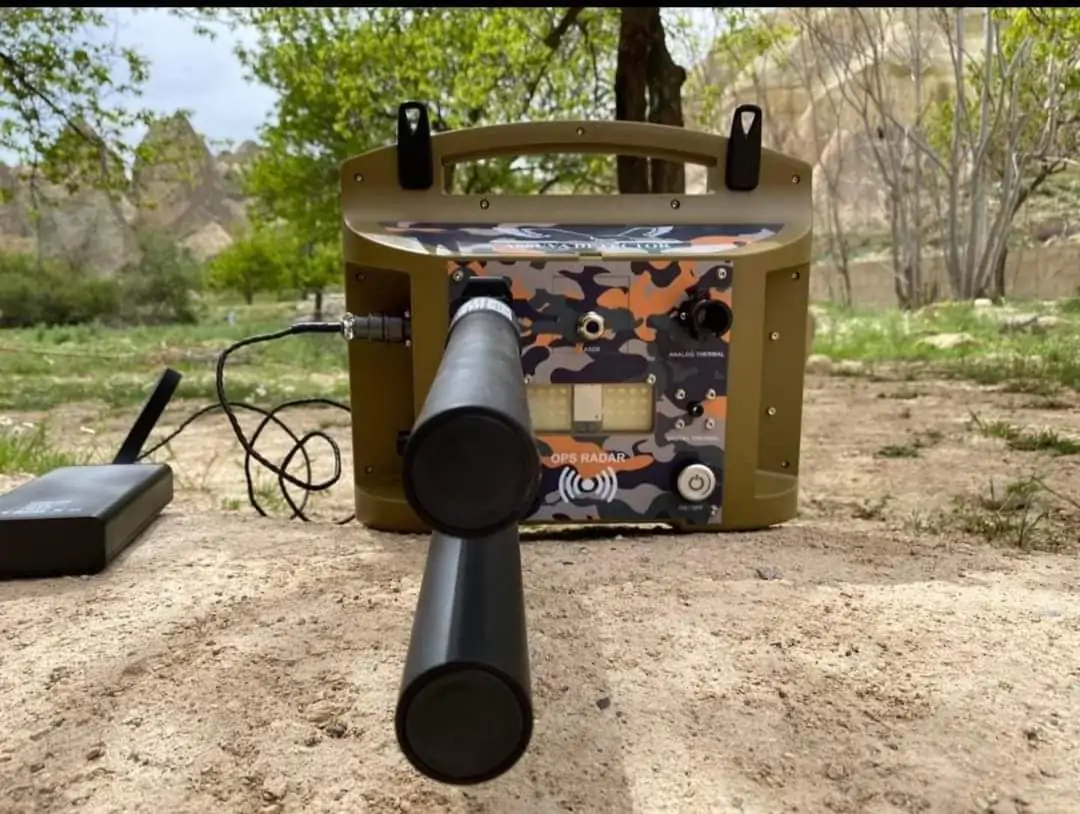

Proton Elic RB-I M-5 metal and cavity detector

Proton Elic RB-I M-5 is designed to provide our valued users with unmatched performance and exceptional accuracy. Equipped with multi-technology radars and state-of-the-art detection sensors, this device integrates various advanced technologies to meet the needs of multiple application fields.

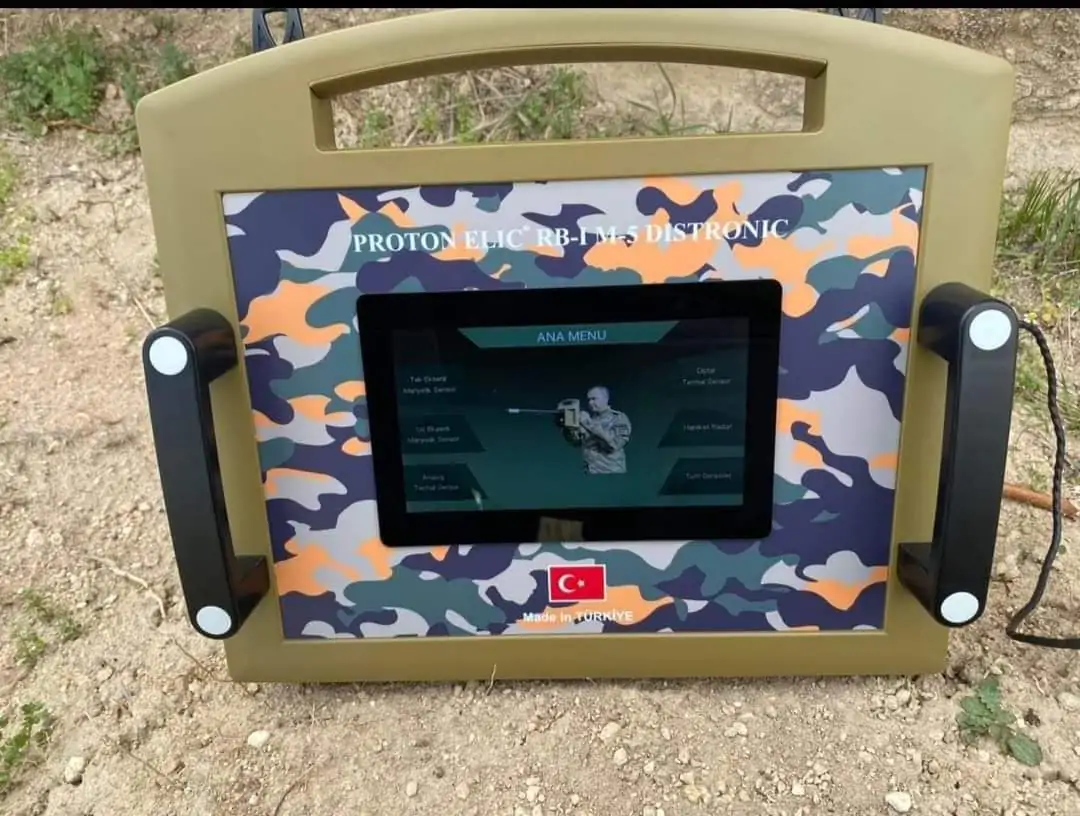

The M-5 minimizes the need for a computer thanks to its built-in display, allowing users to easily view menus and perform real-time scans. Combining the features and capabilities of the Rb-1 M2, Rb-1 M3, and Rb-1 M4 series, the M-5 series represents the pinnacle of innovation after extensive research and development.

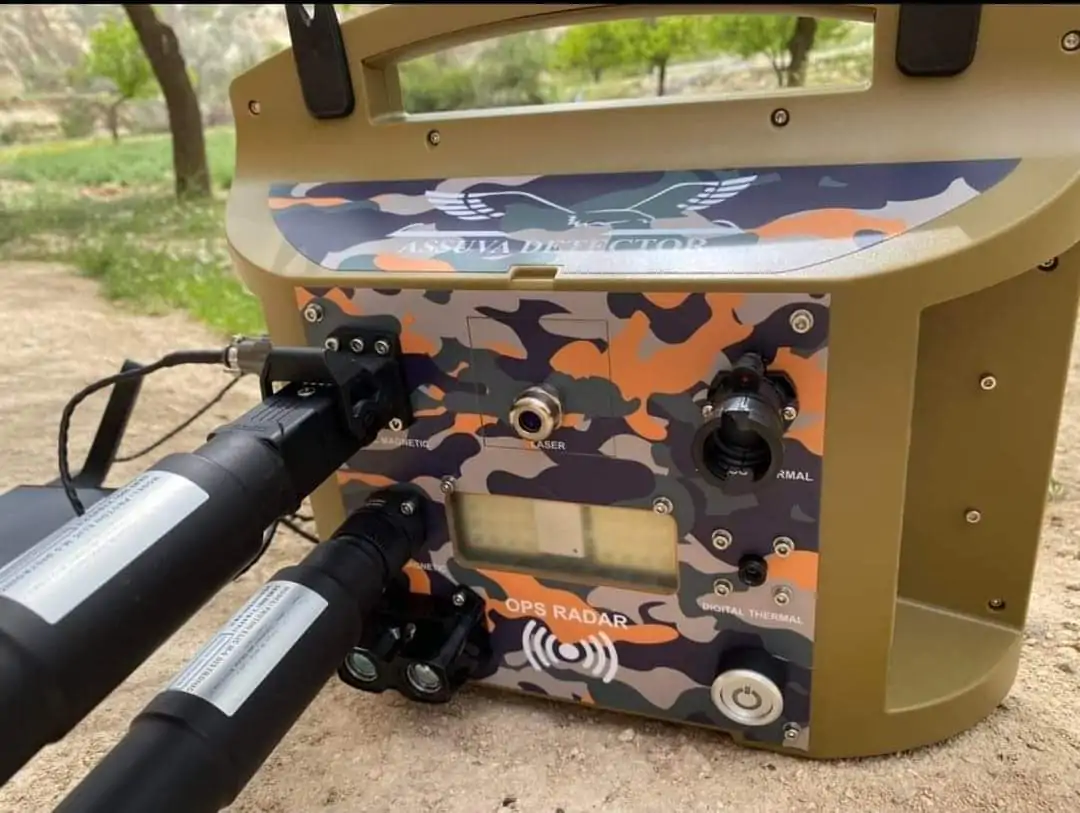

M-5 Sensors and Scanning Technologies

• Digital magnetic sensor: Phase reading
• Thermal magnetic sensor: Temperature difference reading
• Digital thermal sensor: Temperature difference reading
• Ops radar: Surface distance and movement reading
• LiDAR: Distance reading
• Doppler radar: Ground activation

Advanced Features

• Metal detection
• Gap detection
• Ground differentiation
• OAPT detection
• MCT detection
• KST detection
• Distance and depth detection
• HR radar for speed measurement

Measurement Capabilities

• Magnetic sensors: 1,000 tm
• Digital thermal: 250 m
• Analog thermal: 60 m
• Operational radar: 50 m
• LiDAR: Measurement up to 40 m

With the Proton Elic RB-I M-5, you get a powerful, versatile tool for all your detection and scanning applications, delivering superior solutions for optimal results.

LiDAR Technology for Deep Metal and Cavity Detection

The Proton Elic RB-I M-5 integrates state-of-the-art LiDAR technology, delivering advanced detection capabilities for metals and cavities at great depth. Here is how LiDAR technology is used in this innovative device:

What is LiDAR?

LiDAR (Light Detection and Ranging) is a remote-sensing technology that uses laser pulses to measure distances with extreme accuracy. By emitting laser pulses toward a target and measuring the time it takes for them to return to the sensor, LiDAR creates detailed 3D maps of the surface and underground structures.

LiDAR Features in the Proton Elic RB-I M-5

1. Deep Detection:
   • The M-5’s LiDAR is designed to penetrate the ground and detect metallic objects and cavities down to a depth of 40 meters. This depth capability makes it possible to locate deeply buried objects and complex underground structures.
2. High Precision:
   • Thanks to millimeter-level precision in LiDAR measurements, users can accurately identify the position and size of metals and cavities. This accuracy is crucial for applications such as archaeology, construction, and mineral exploration.
3. Real-Time Mapping:
   • The LiDAR built into the M-5 enables real-time mapping, providing instant visualizations of scanned areas. This feature is especially useful for rapid analysis and immediate decision-making in the field.
4. Material Differentiation:
   • LiDAR technology can distinguish between different types of materials by analyzing the reflection characteristics of laser pulses. This makes it possible to differentiate metals from other materials and identify cavities accurately.
5. Intuitive Interface:
   • The M-5’s built-in display shows LiDAR data clearly and intuitively, making results easy to interpret even for non-expert users. Interactive menus allow easy navigation between different scanning and analysis options.

LiDAR Applications in Metal and Cavity Detection

• Archaeology: Detect buried archaeological sites and map ancient structures without invasive excavation.
• Construction: Identify cavities and underground obstacles for safe construction project planning.
• Mineral exploration: Precisely locate mineral deposits and metal veins for efficient extraction.
• Security: Inspect underground infrastructure to detect anomalies and potential risks.

With its advanced LiDAR technology, the Proton Elic RB-I M-5 delivers a robust, accurate detection solution for a wide range of applications requiring in-depth subsurface analysis.
